Production description:

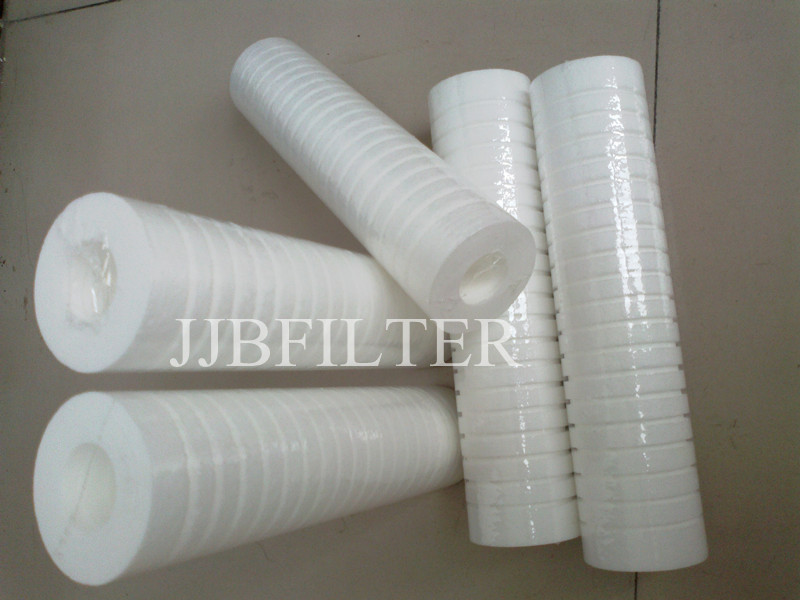

PP meltblown grooving filter element is made of polypropylene superfine fiber, shape is a deep type,structure
has two main features: one is gradual density structure, the filter pore size from outside to inside gradually
becomes small, in order to achieve deep filtration effect, two layers deep structure, due to the deep type filter
it is within the tight pine structure design to reach deep filtration effect, in a progressive density structure will
surface fiber reinforced structure, in order to increase the filter resistance, reduce the surface removal rate,
and in the surface of the filter core set up multiple air holes, so as to disperse water flow direction, reduce the
flow resistance and increase the surface containing sewage volume effect
Product features:
Deep grooves on the surface structure and dispersed direction of water flow, reducing flow resistance
Incremental density structure, increase the amount of filter sink
Fiber structure strengthening, not easy hair removal
Pp ultra-fine fiber, high-precision filtration
100% pure pp, high corrosion resistance Hot melt moulding, without adding any binders
Technical specifications
Filtration precision:0.5μm,1μm,5μm,10μm,20μm
filter diameter:63mm
inner diameter of filter:28mm
Maximum working pressure:2bar at 20℃
Maximum working temperature:85℃
Areas of application
Organic solvent filtration
Semiconductor cooling water filter
Clarification of chemical liquid filter
Ultra pure water filter Paint filter
