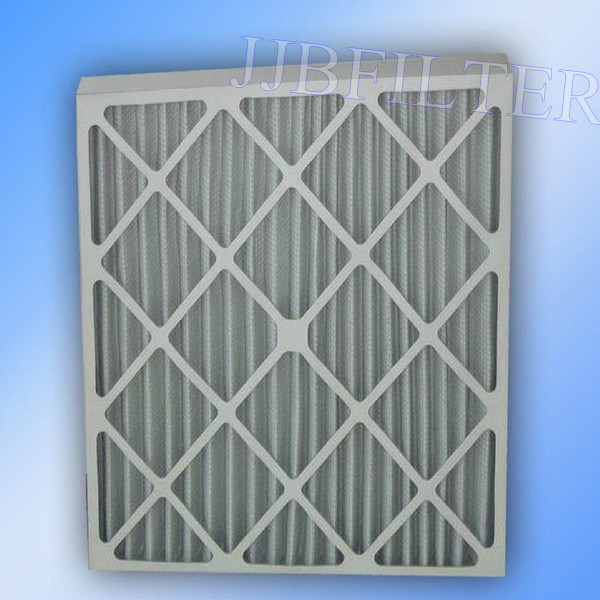

BFBOF2 board filters produced by Xinxiang JJB Filter Co.,Ltd. have the following features: cheap, light, good compatibility and compact structure.
The products adopt hard-paper frame and comound fiber filtering media and there is a metal net behind the folded filtering media for supporting.
Dimensions
Depths of the filters are 46mm and 96mm, with corresponding nominal depth of “2”and “4”. Preferable height and width are 595mm, with corresponding nominal size of 24”.
Typical uses of BFBOF2 board filter
Pre-filtering of air-conditioning and ventilation systems
Pre-filtering of large air compressors
Returning-wind filtering of cleaning chambers
Pre-filtering efficiency of BFBOF2 filters is G3 and the filters are usually used in stage-1 filtering of air-conditioning and ventilation systems, as well as in air-conditioning and ventilation systems that have only one-stage filtering.
Specifications
BFBOF2-6605-G3 595*595*46CBM
BFBOF2-3605-G3 290*595*46CBM
BFBOF2-6610-G3 595*595*96CBM
BFBOF2-3610-G3 290*595*96CBM
