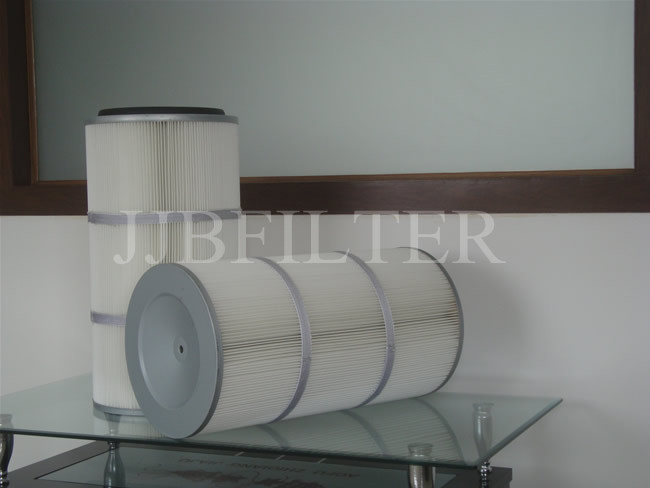

Spun Bonded Ployester Air Filter Cartridge with PTFE Media

Product features:
Imported spun bonded polyester with PTFE membrane,microporou offers 99.99% filter efficiency.
Wide pleat spacing and smooth,hydrophobic PTFE provides excellent partical release.
Imported films,high precision,filter effects,according to the finest working conditions up to 0.03 micron.
Skeleton are as protective cover treatment,PTFE gathered excellent chemical corrosion resistance.
Cartridge is serviced a long time,general working conditions of up to 2-3 years.
Application；welding fumes,shot casting,pharmaceutical,cement,tobacco,textile industry and other industries of the filter.

Specifications:

Model	Tube sheet H.D(mm)	Top cover O.D(mm)	Bottom cover O.D(mm)	Bolt hole mm	Height mm	Filtration area m2
TRLF/F 3266	324	213	324	14	660	9.4
TRLF/F 32100	324	213	324	14	1000	14.2
TRLF/F 3566	352	241	352	16	660	10
TRLF/F 35100	352	241	352	16	1000	15.1
