Products introduction:

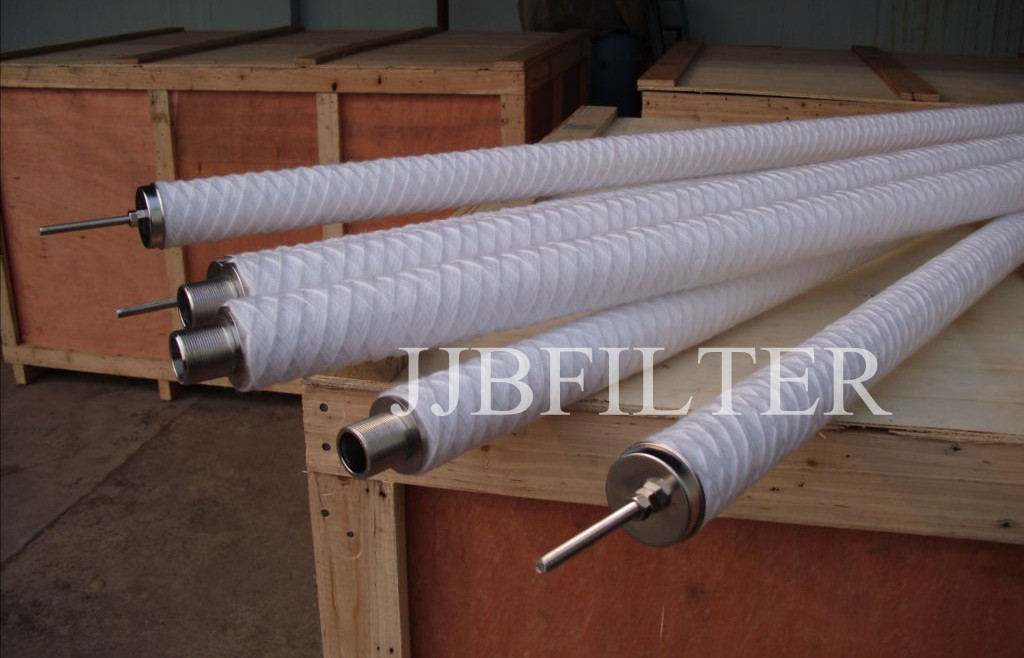

70 "power plant pleated filter is washable repeatly which is specially designed for a special design for the filtration of condensate water in power plant.
Application field :
l RO, sea water desalination pretreatment
l filtration of condensate water in power plant
l Filtration of raw materials, solvents, water in biological pharmaceutical industry
l Paint, coating material,chemical industry
l Microelectronics, photographic film, fiber and resin
Products Properties:
l Complete PP structure
l Wide range of chemical application
l Design of pleat increases filtration area
l washable repeatedly
l A layer of resin can be painted in the shell surface before being used
l The surface of filter is designed to ensure effective particles removal
l Super-long filter 70''( 1778mm) is suitable for large capacity, high capacity of pollution occasions.
l Be installed directly in the existing shell, without changing and transformation
Technical Specifications:
Filter size
l Outer diameter :64mm
l Length : 60''(1524mm) 70''(1778mm)
Parts material :
l Filter material : polypropylene
l Support : polypropylene
l Connection mode:thread ,222 fins
Filter cartridge :
l Filtering precision : 1 um ,4 um,10um
l Maximum operating temperature : 82℃
l Maximum differential pressure : 2.8 Bar 65℃
